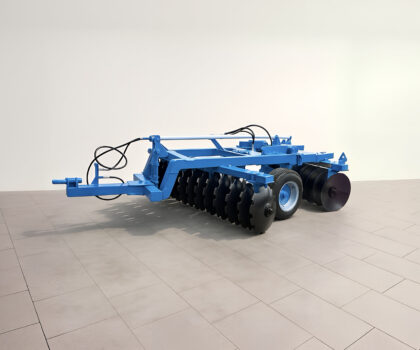

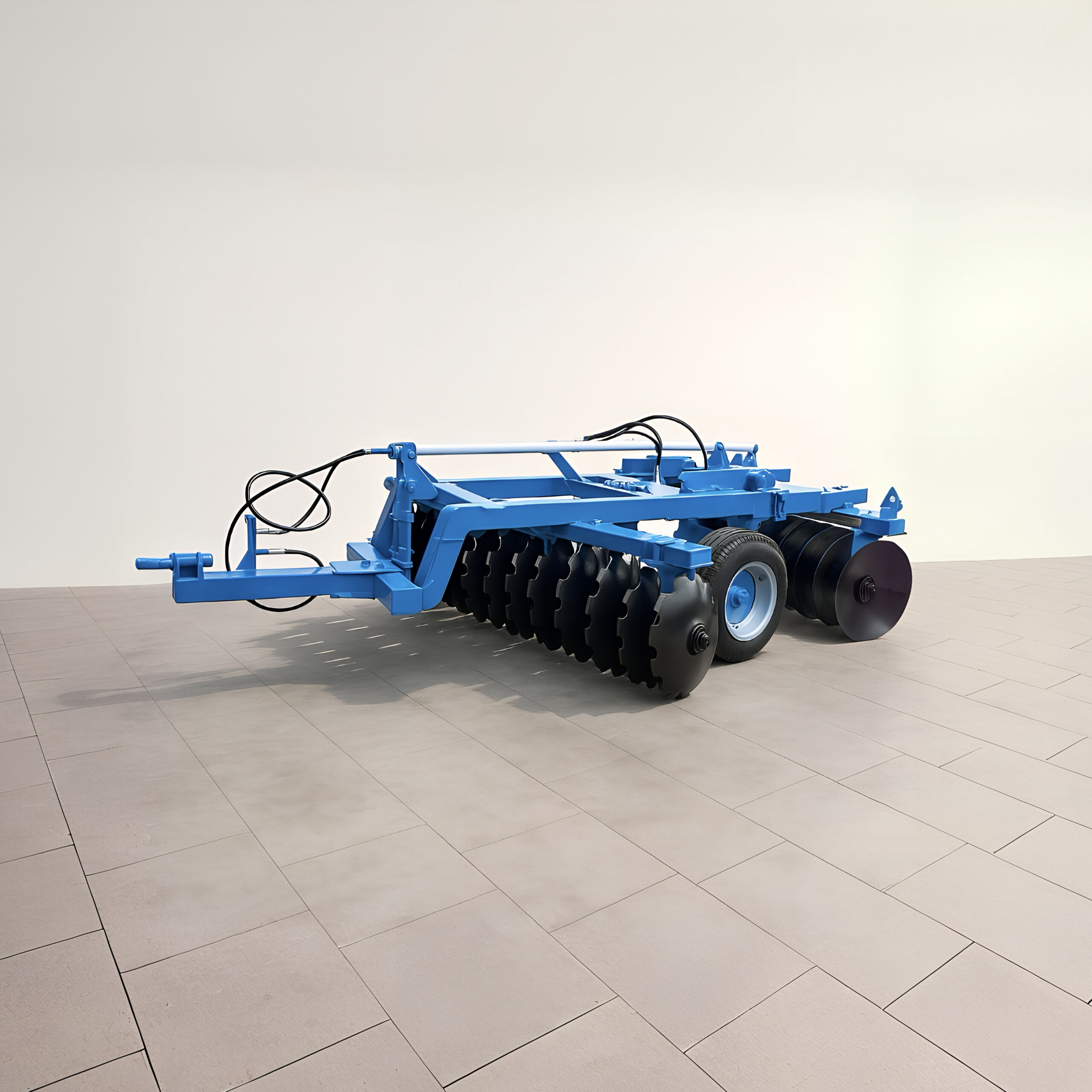

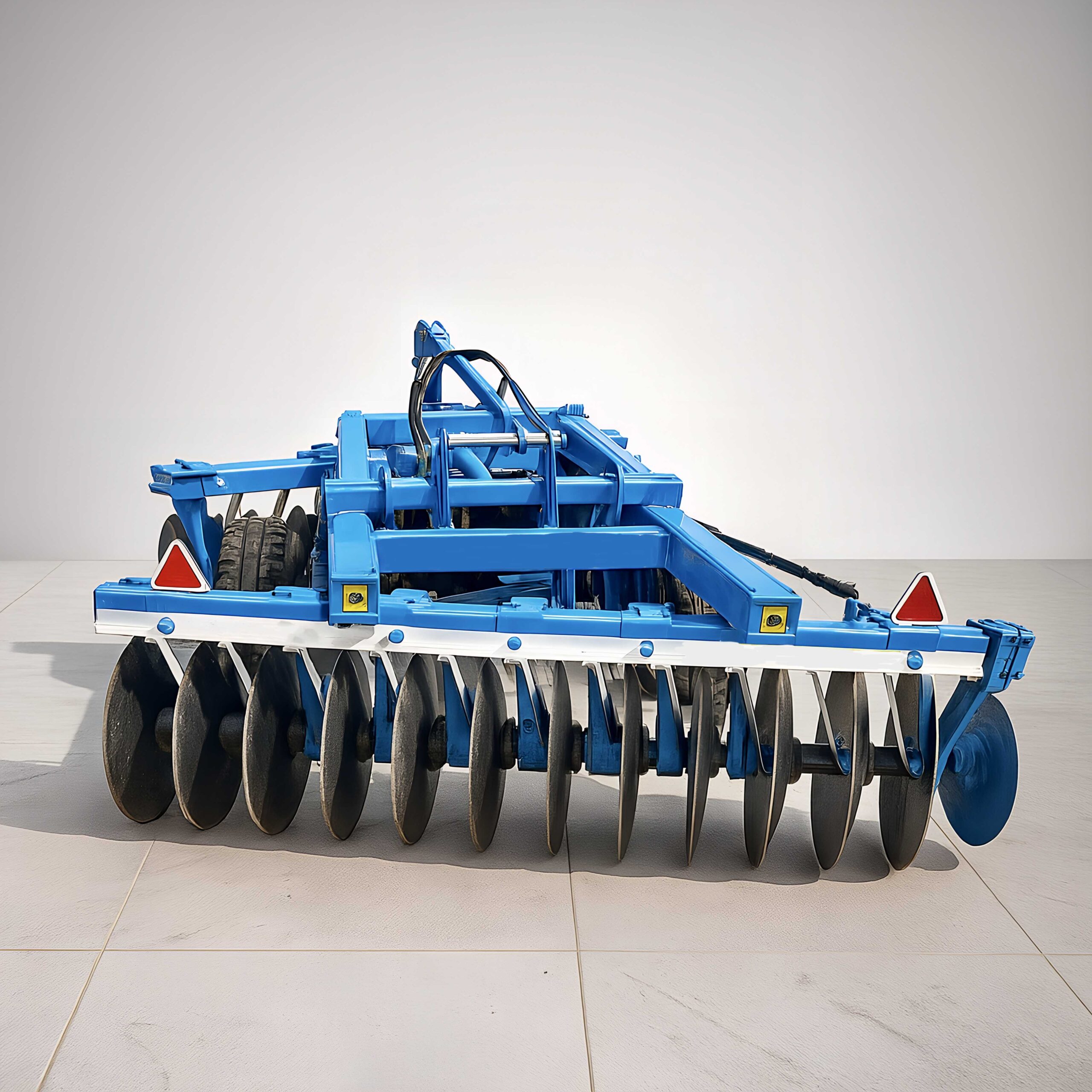

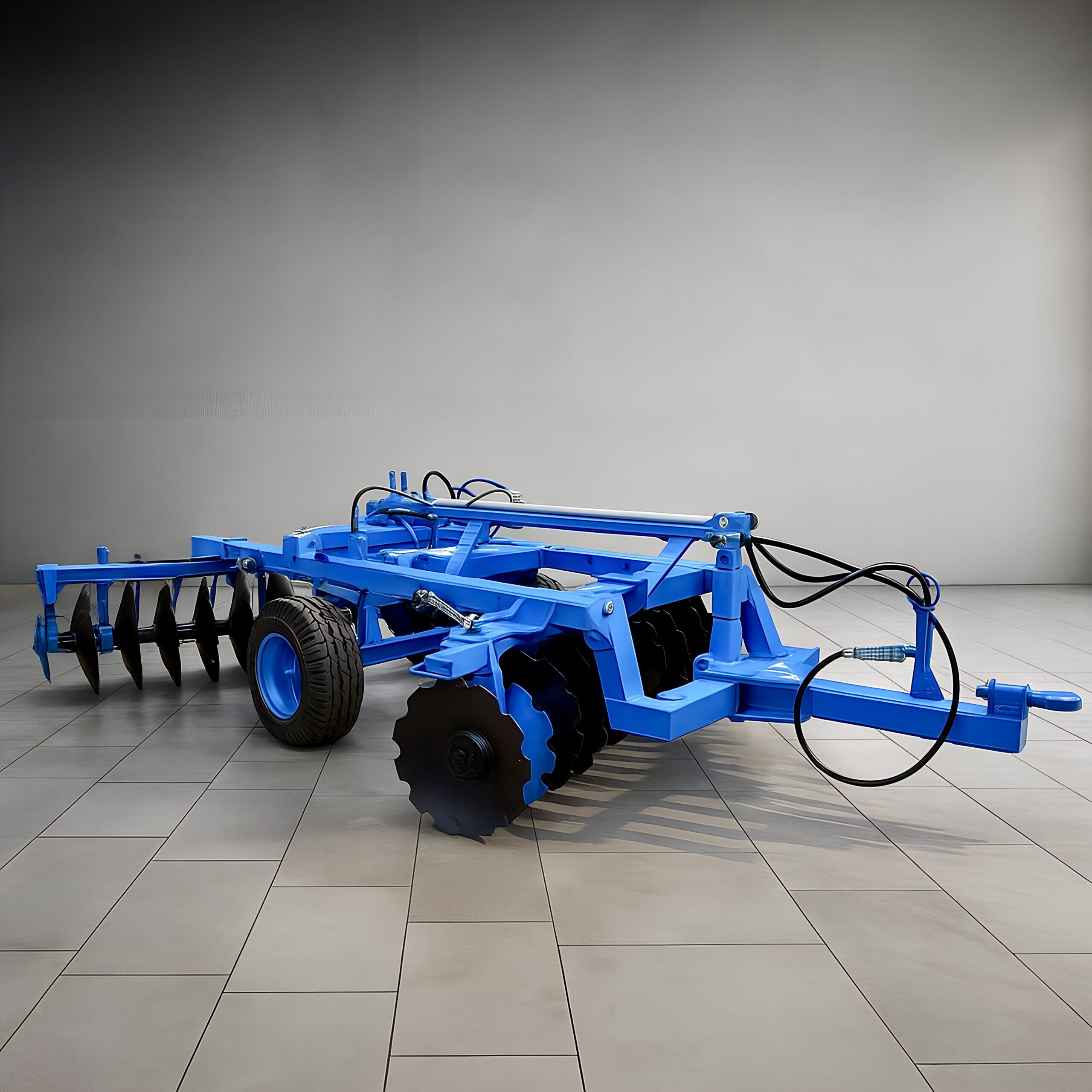

Hydraulic Offset Disc Harrows
The Hydraulic Offset Disc Harrow is a heavy-duty tillage implement designed for deep soil preparation, stubble management, and breaking up hard clods after ploughing. Its hydraulically adjustable gang angles allow for precise offset positioning, ensuring optimal penetration and soil mixing across various field conditions. Built with high-carbon steel discs and a sturdy frame, it’s ideal for both pre-sowing soil refinement and post-harvest residue incorporation.
🛒 Ideal for:
Farmers aiming for deep tillage, stubble management, and improved soil health before sowing wheat, paddy, maize, or pulses.
Challenges
- Struggles to penetrate hard, dry soil.
- Manual gang angle adjustment is time-consuming.
- Frequent wear leads to high maintenance.
Solutions
- Heavy-duty discs and frame ensure deep, consistent penetration.
- Hydraulic system allows quick, on-the-go angle changes.
- Durable discs and sealed bearings reduce wear and servicing needs.
Specifications
| Total width | 3120 mm |
| Frame width | 1300 mm |
| Total length | 5500 mm |
| Frame length | 4000 mm |
| Total height | 1300 mm |
| Frame height | 1130 mm |
| Working depth | 200-220 mm |
| Working width | 3120 mm |
| Battery axle | 40 mm |
| Frame size | 6″ – 4″ |
| Disc diameter | 22″ & 24″ |
| Disc space | 220 mm |
| Weight | 2615 kg |
