Tractor Sprayer The Tractor Sprayer is a high-capacity spraying i...

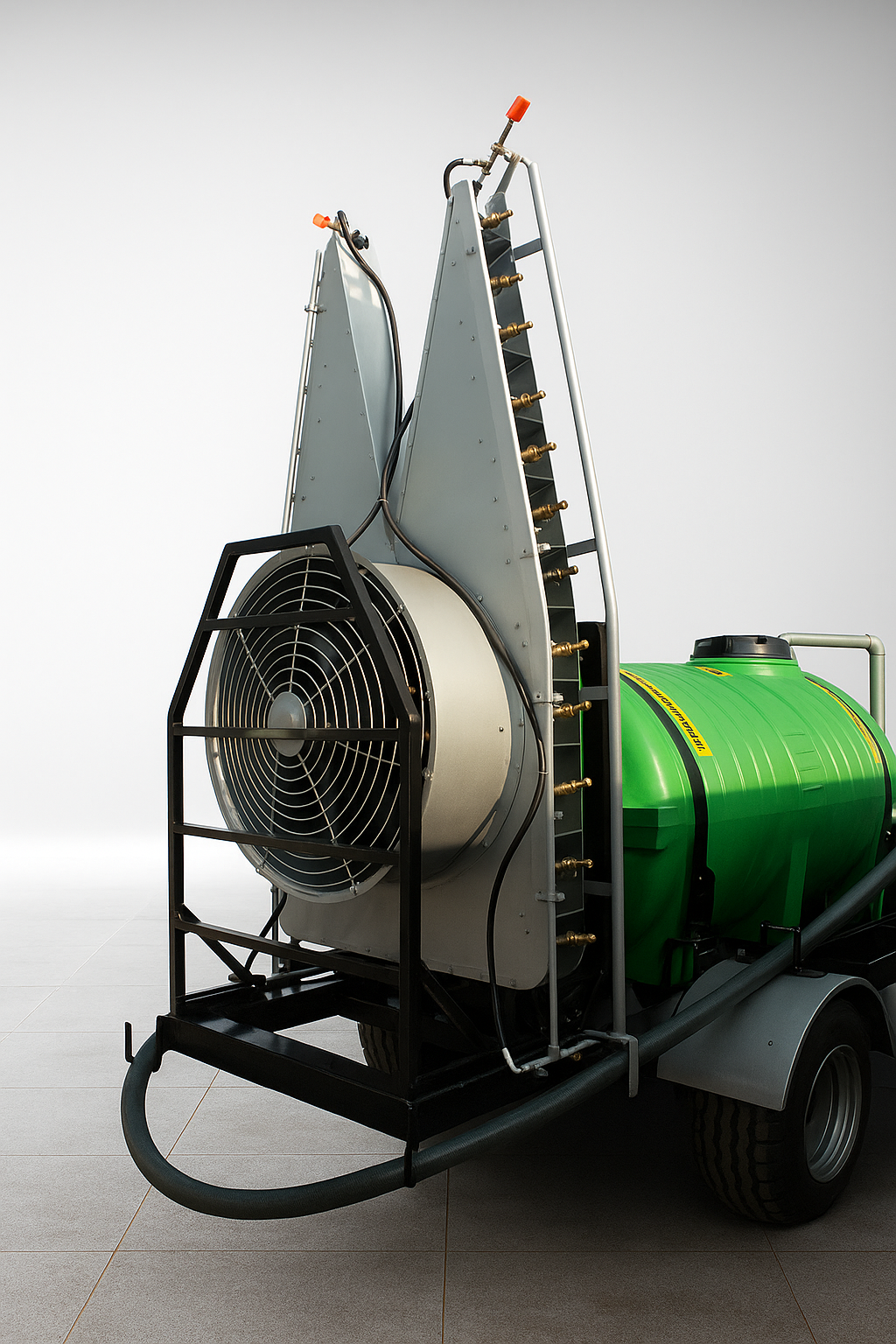

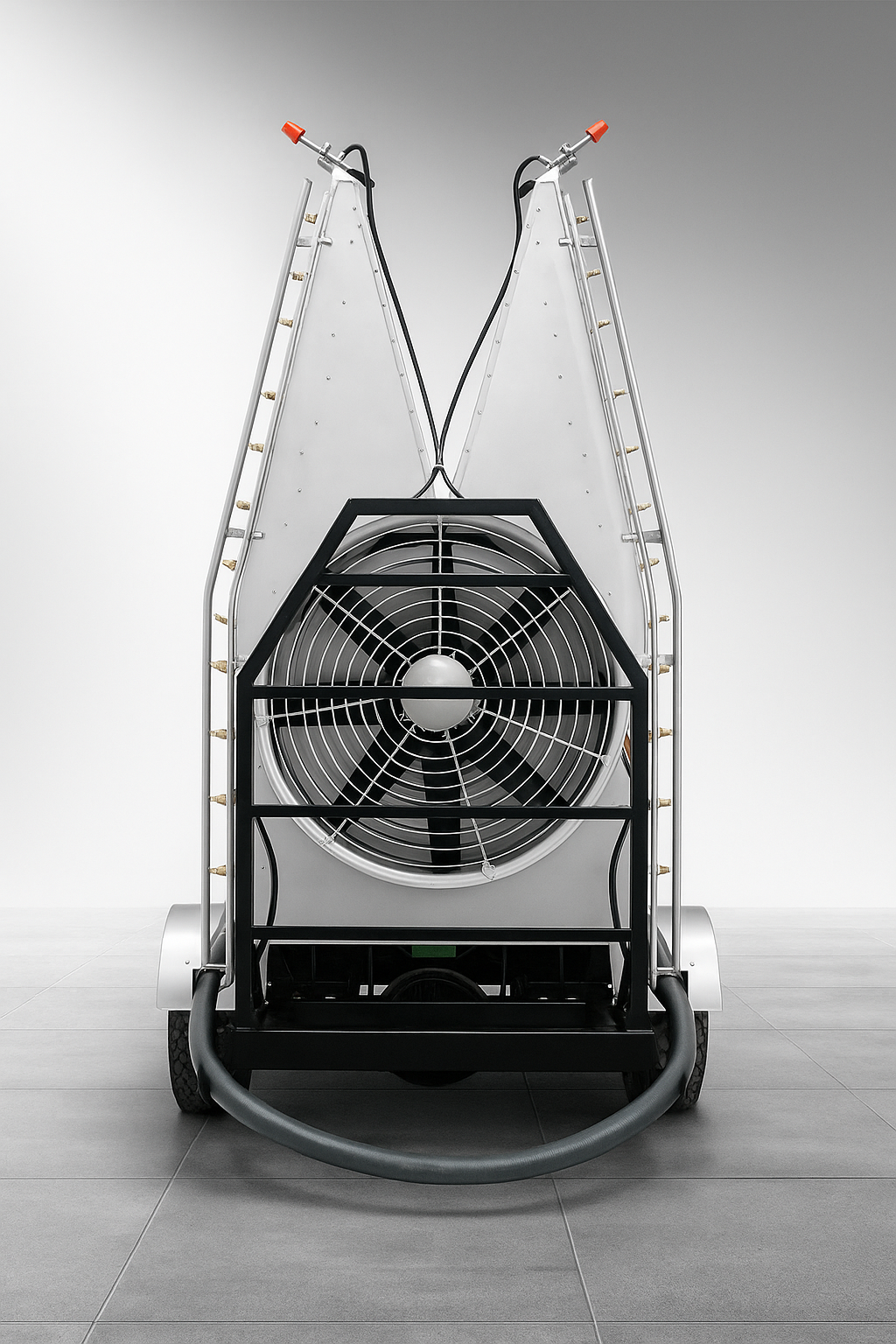

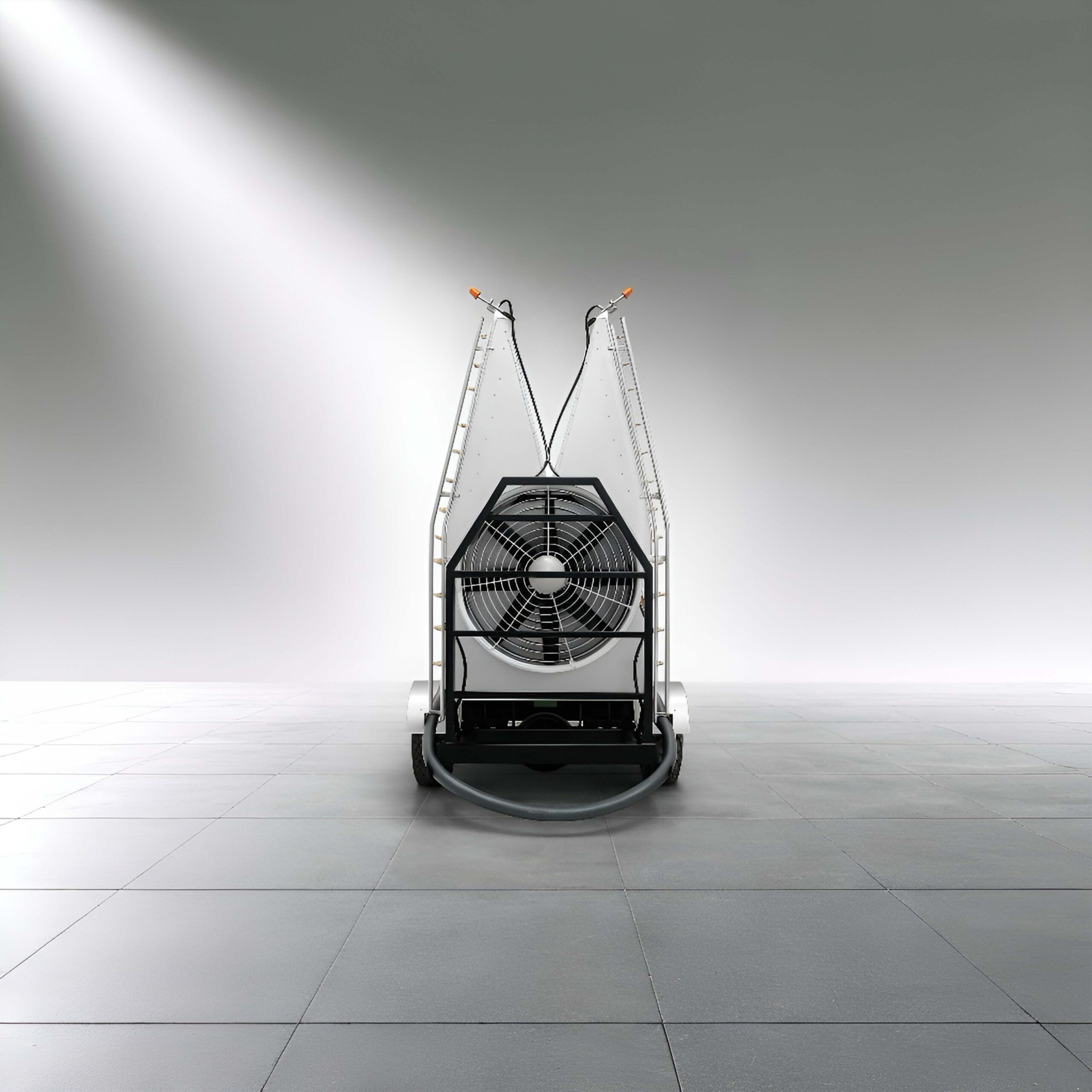

Tractor Sprayer
The Tractor Sprayer is a high-capacity spraying implement designed for the precise application of pesticides, herbicides, and liquid fertilizers across large agricultural fields. Mounted or trailed behind a tractor, it ensures uniform coverage, reduces chemical wastage, and saves time, making it an essential tool for protecting crops and boosting yields in modern farming.
Challenges:
- Uneven chemical spray coverage.
- High chemical wastage.
- Frequent clogging of nozzles.
Solutions:
- Precision nozzles ensure uniform distribution.
- Adjustable spray control minimizes waste.
- Filtration system prevents blockages.
Specifications
| Tank capacity | 500 l |
| Operating pressure | 680 kpa |
| Maximum pressure | 2760 kpa |
| Weight without liquid | 270 kg |
| Length | 1364 mm |
| Width | 1000 mm |
| Height | 1212 mm |
| Application rate | 500 – 700 l/h |
| Type of nozzle | Hollow cone |
| Number of Nozzles | 20 |
| Power required | 40 hp |
